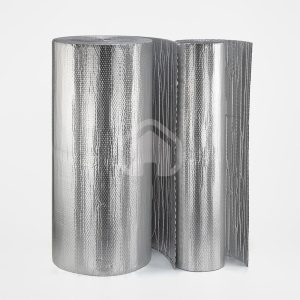

PROTECT DB

Multipurpose reflective thermal insulation for ROOFS, WALLS, HVAC, LSF, WOODEN HOUSES, PACKAGING, VEHICLES, etc.



With Double Protected Aluminium and Double Bubble.

PROTECT DB

  • 32m x 1,25m
  • 40m²
  • 56 cm

PROTECT DB R10

  • 8m x 1,25m
  • 10m²
  • 28 cm

Quick info

Composition

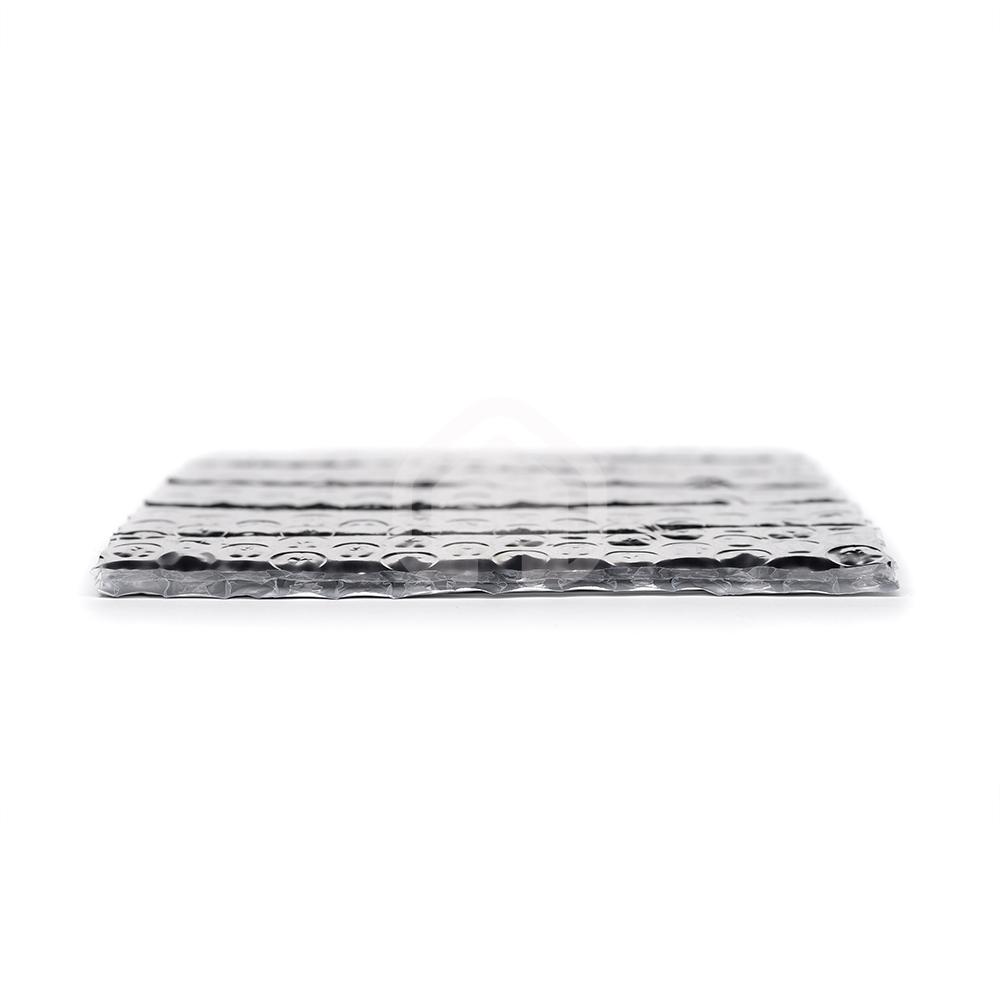

Reflective insulation composed of two sides of protected and reinforced aluminium and Double air Bubble inside.

Benefits

  • Faster application: 1,25m high, with 1,20m of performance after overlaps
  • More energy efficient buildings and houses
  • High insulation power in conduction, radiation and convection
  • Adds sound insulation for impact noises
  • Radon gas barrier
  • Quick and easy to install
  • Impermeable to water
  • Does not promote the breeding of insects or rodents
  • The product acts as an air chamber

Technical Data

  • Thickness: 8 mm
  • Thermal Conductivity: 0,038 (W/m.K)
  • Reflection Coefficient: 95 a 97%
  • Emissivity: 3 a 5%
  • Resistance to Compression (50% Deformation): 7,08 ± 0,59 (N/mm2)
  • Tear Resistance (Aluminium Side): 69,17 ± 8,60 (N/mm)
  • Fire Rating (Aluminium Side): M1
  • Fire Rating (Composite Product): Euroclasse E
  • Thermal Resistance (R): 1,77 (m²k/w)
  • Water Vapour Permeability: б ≤ 0,079×10-3 (mg / h.m.Pa)
  • Usage Temperature: -25º a 80º (ºC)
  • Hazardous Substances: Does not contain
  • Radon Gas Barrier: Yes

Download the Technical Data Sheet (in PDF format)

Application Areas

  • Interior insulation of buildings
  • Insulation of roofs and ceilings
  • Insulation of industrial warehouses, greenhouses, barns, cowsheds, aviaries, pigsties, hatchery rooms, laying and milking rooms, stables, etc…
  • Insulation of garages
  • Isolation of Spas and Saunas
  • Shelter insulation
  • Insulation of sports complexes
  • Climatization / Ventilation Insulation (HVAC, Ducts):
    • Various types of ducts and pipes
    • Power and distribution channels
  • Insulation of camping vehicles and caravans
  • Tent insulation
  • Isothermal packaging
  • Insulation of containers and trucks
  • Isothermal bags
  • Insulation of blinds
  • Reinforcement of existing insulation
  • Additional waterproofing
  • Radon gas barrier
  • And much more…

Thermal Equivalence

  • Rock Wool 67mm
  • Glass Wool 76mm
  • Expanded Polystyrene (EPS) 64mm
  • Extruded Polystyrene (XPS) 62mm
  • Expanded Cork 71mm
