  /    /  Thermal insulation  /  ULTRA BIG

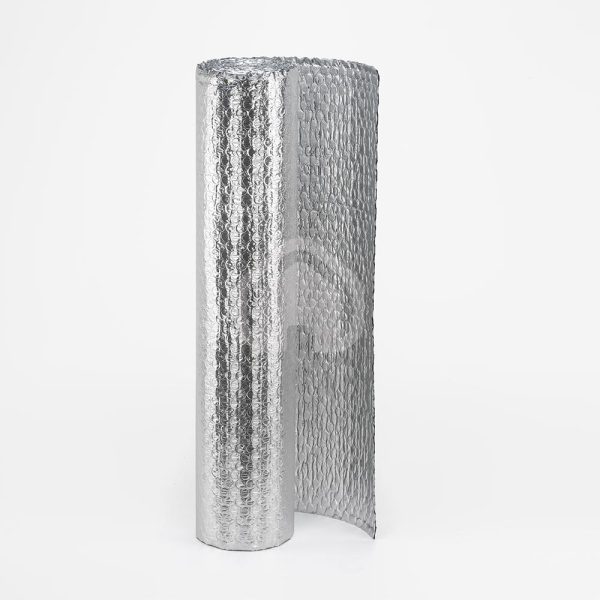

ULTRA BIG

Multipurpose reflective thermal insulation for WALLS, HVAC, LSF, WOODEN HOUSES, PACKAGING, VEHICLES, etc.



With double faced protected aluminium and large bubble.

ULTRA BIG

  • 32m x 1,25m
  • 40m²
  • 52 cm

ULTRA BIG R10

  • 8m x 1,25m
  • 10m²
  • 25 cm

Quick info

Composition

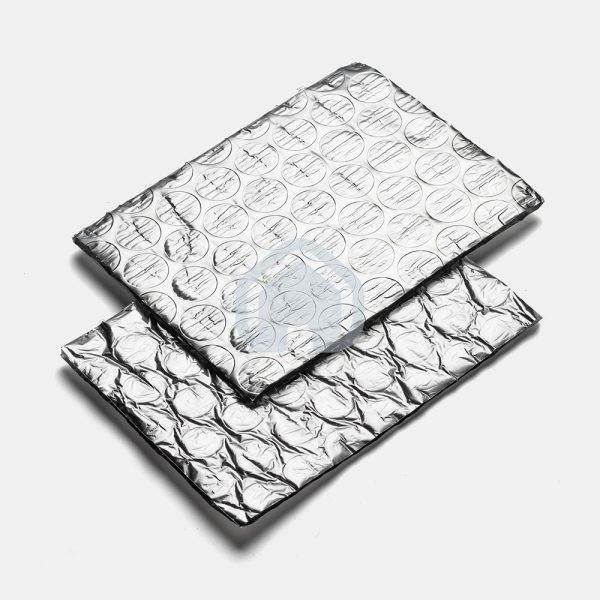

Reflective insulation composed of two faces with protected and reinforced aluminium and a large air bubble layer inside.

Benefits

  • Faster application: 1,25m high, with 1,20m of performance after overlaps
  • More energy efficient buildings and houses
  • High insulation power in conduction, radiation and convection
  • Adds sound insulation for impact noises
  • Radon gas barrier
  • Quick and easy to install
  • Impermeable to water
  • Does not promote the breeding of insects or rodents
  • The product acts as an air chamber

Technical Data

  • Thickness: 8 mm
  • Thermal Conductivity: 0,050 (W/m.K)
  • Reflection Coefficient: 95 a 97%
  • Emissivity: 3 a 5%
  • Resistance to Compression (50% Deformation): 1,90 ± 0,52 (N/mm²)
  • Tear Resistance (Aluminium Side): 162,10 ± 30,38 (N/mm)
  • Fire Rating (Aluminium Side): M1
  • Fire Rating (Composite Product): Euroclasse E
  • Thermal Resistance (R): 1,66 (m²k/w)
  • Water Vapour Permeability: б ≤ 0,019×10-3 (mg / h.m.Pa)
  • Usage Temperature: -25º a 80º (ºC)
  • Hazardous Substances: Does not contain
  • Radon Gas Barrier: Yes

Application Areas

  • Insulation of walls
  • Interior insulation of roofs
  • Insulation of industrial warehouses, greenhouses, barns, cowsheds, aviaries, pigsties, hatchery rooms, laying and milking rooms, stables, etc…
  • Insulation of garages
  • Isolation of Spas and Saunas
  • Shelter insulation
  • Insulation of sports complexes
  • Climatization / Ventilation Insulation (HVAC, Ducts):
    • Various types of ducts and pipes
    • Power and distribution channels
  • Insulation of camping vehicles and caravans
  • Tent insulation
  • Isothermal packaging
  • Insulation of containers and trucks
  • Isothermal bags
  • Insulation of blinds
  • Reinforcement of existing insulation
  • Additional waterproofing
  • Radon gas barrier
  • And much more…

Thermal Equivalence

  • Rock Wool 63mm
  • Glass Wool 70mm
  • Expanded Polystyrene (EPS) 60mm
  • Extruded Polystyrene (XPS) 60mm
  • Expanded Cork 66mm
